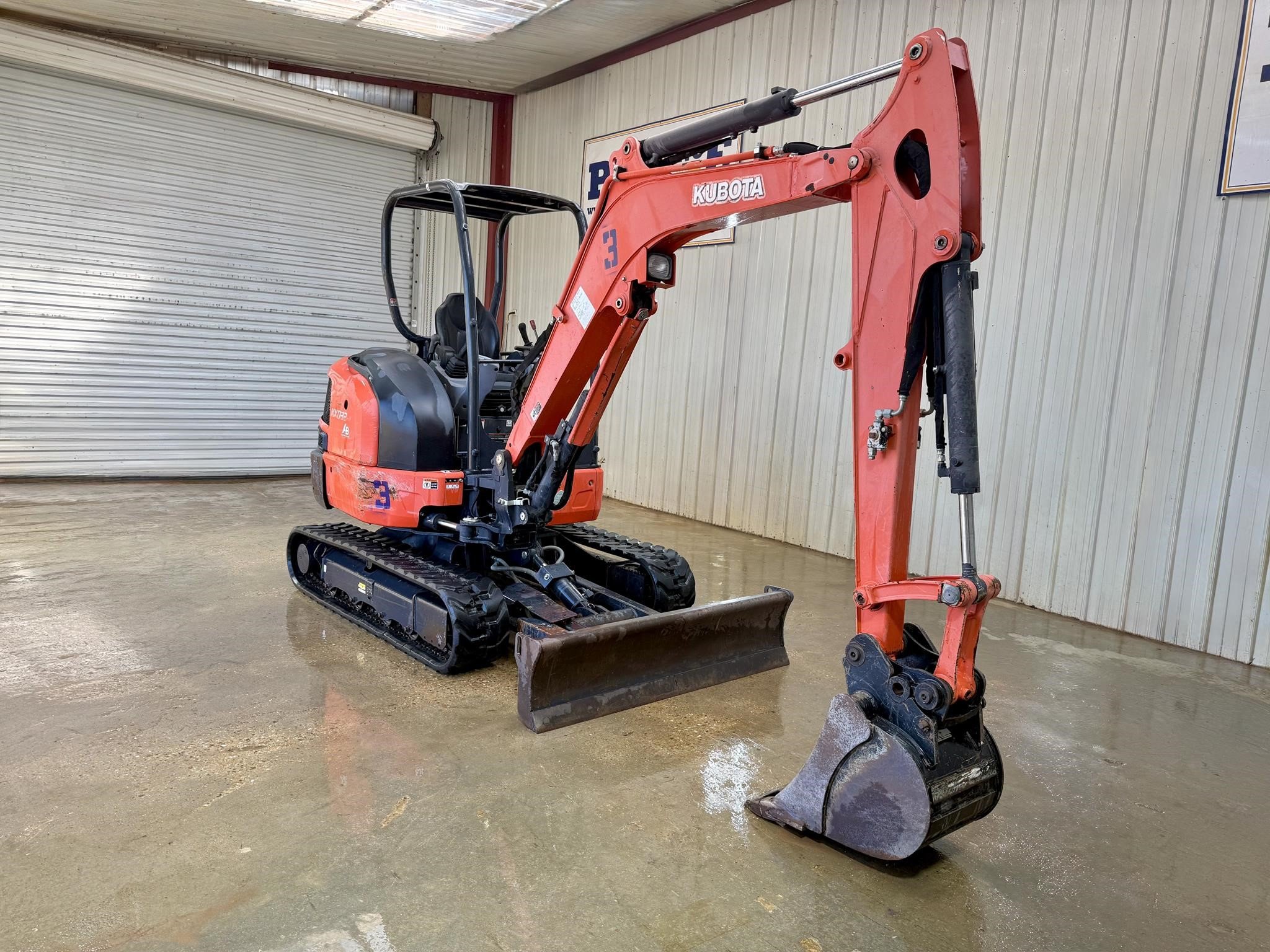

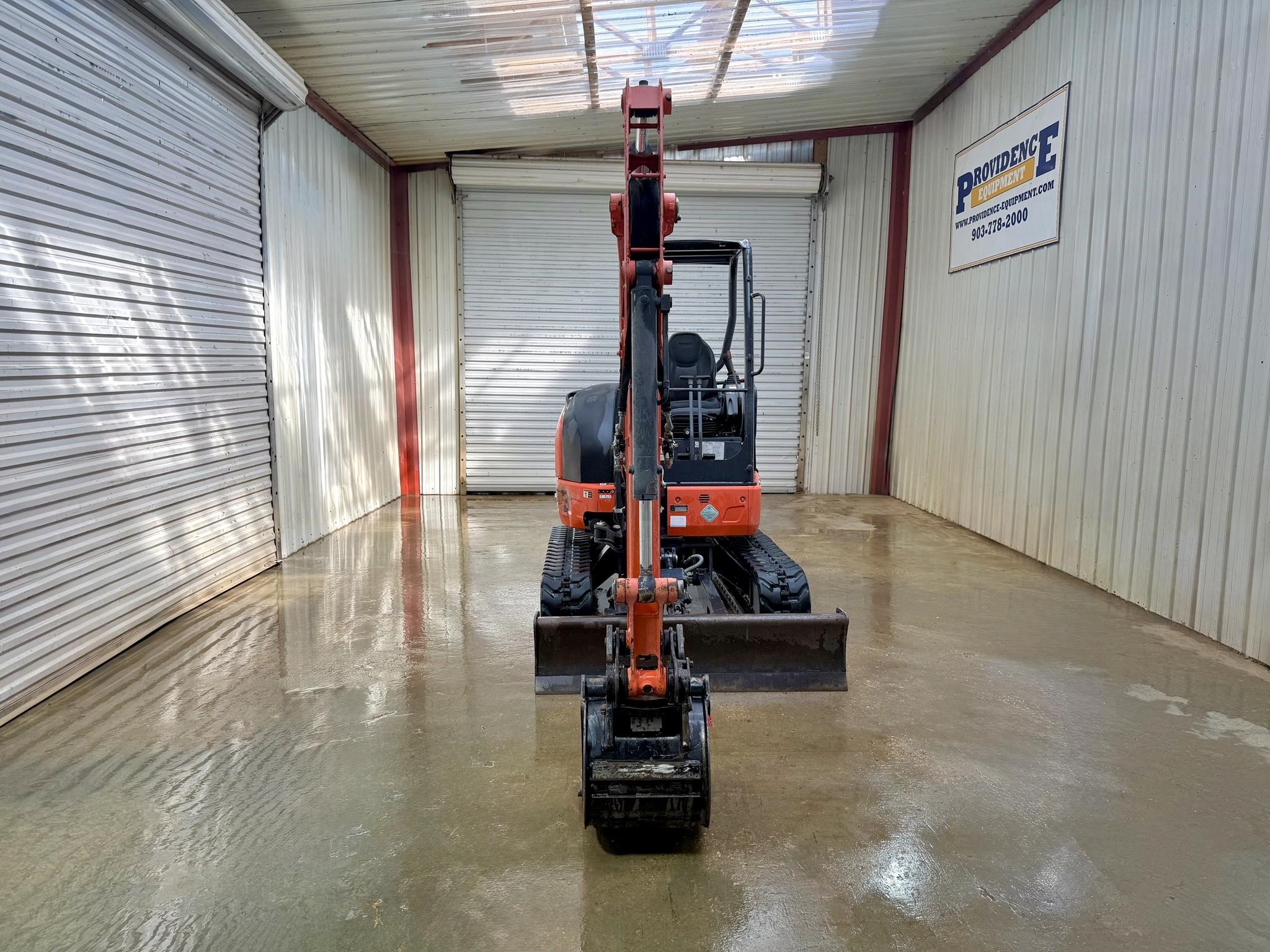

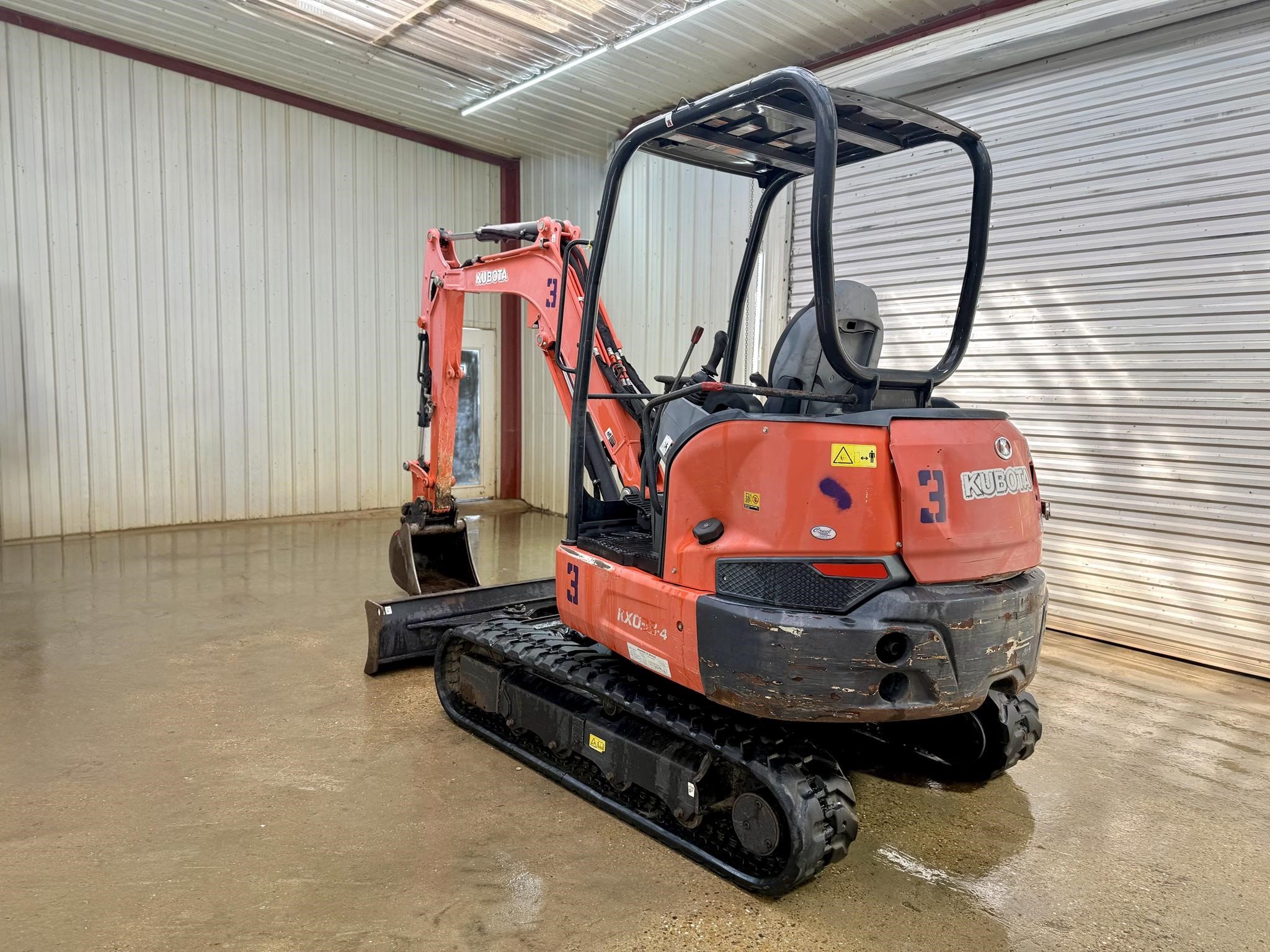

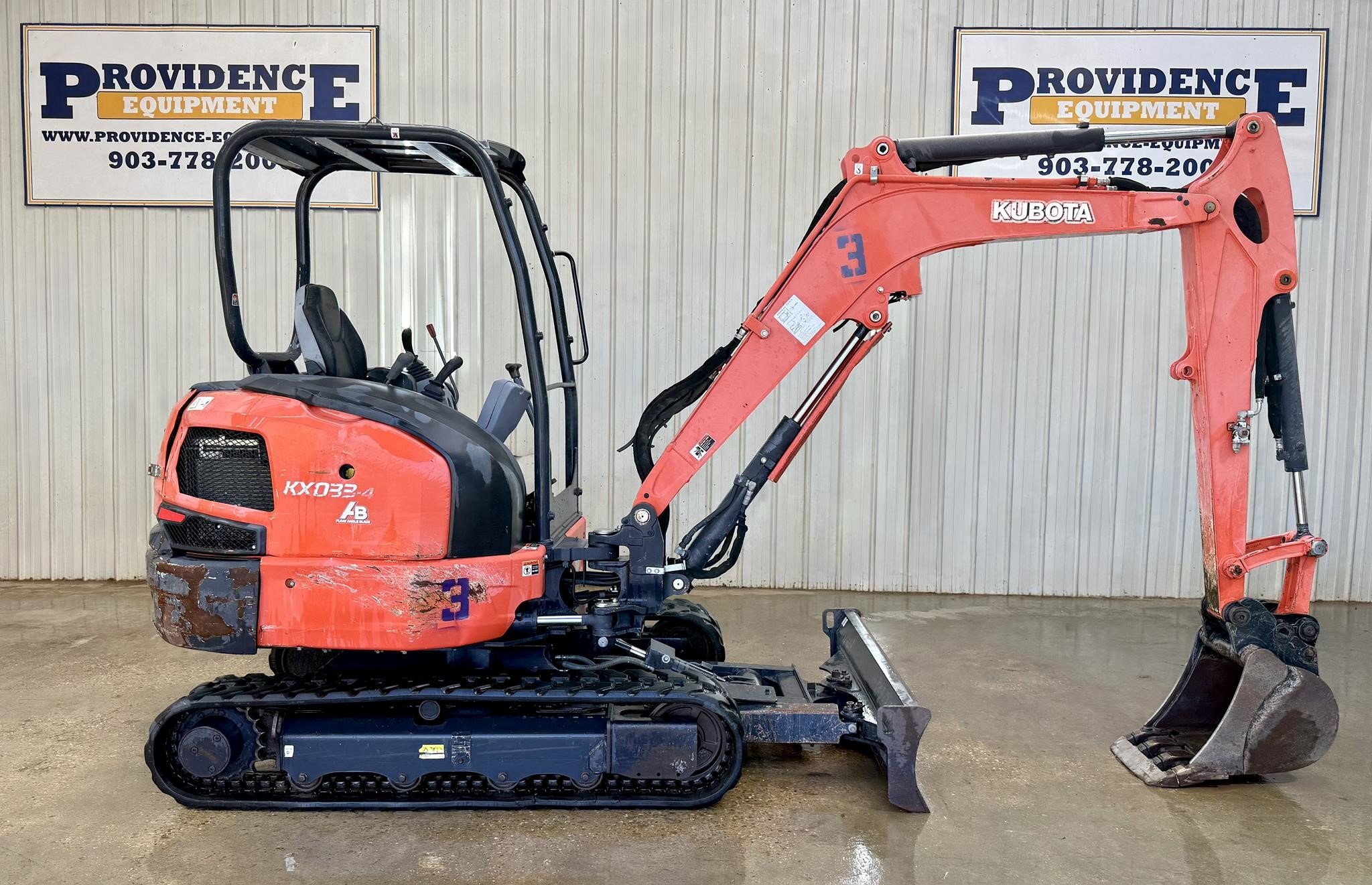

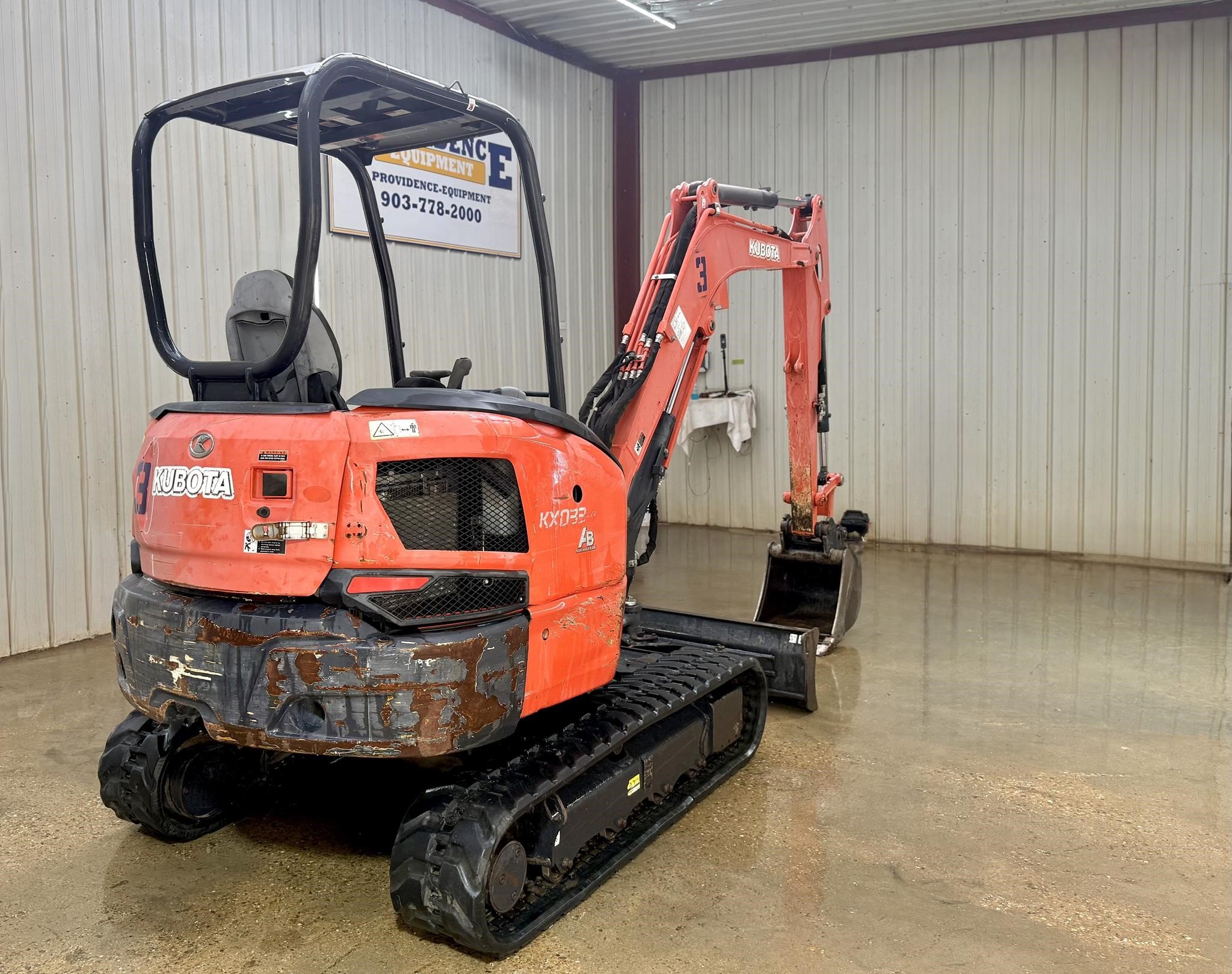

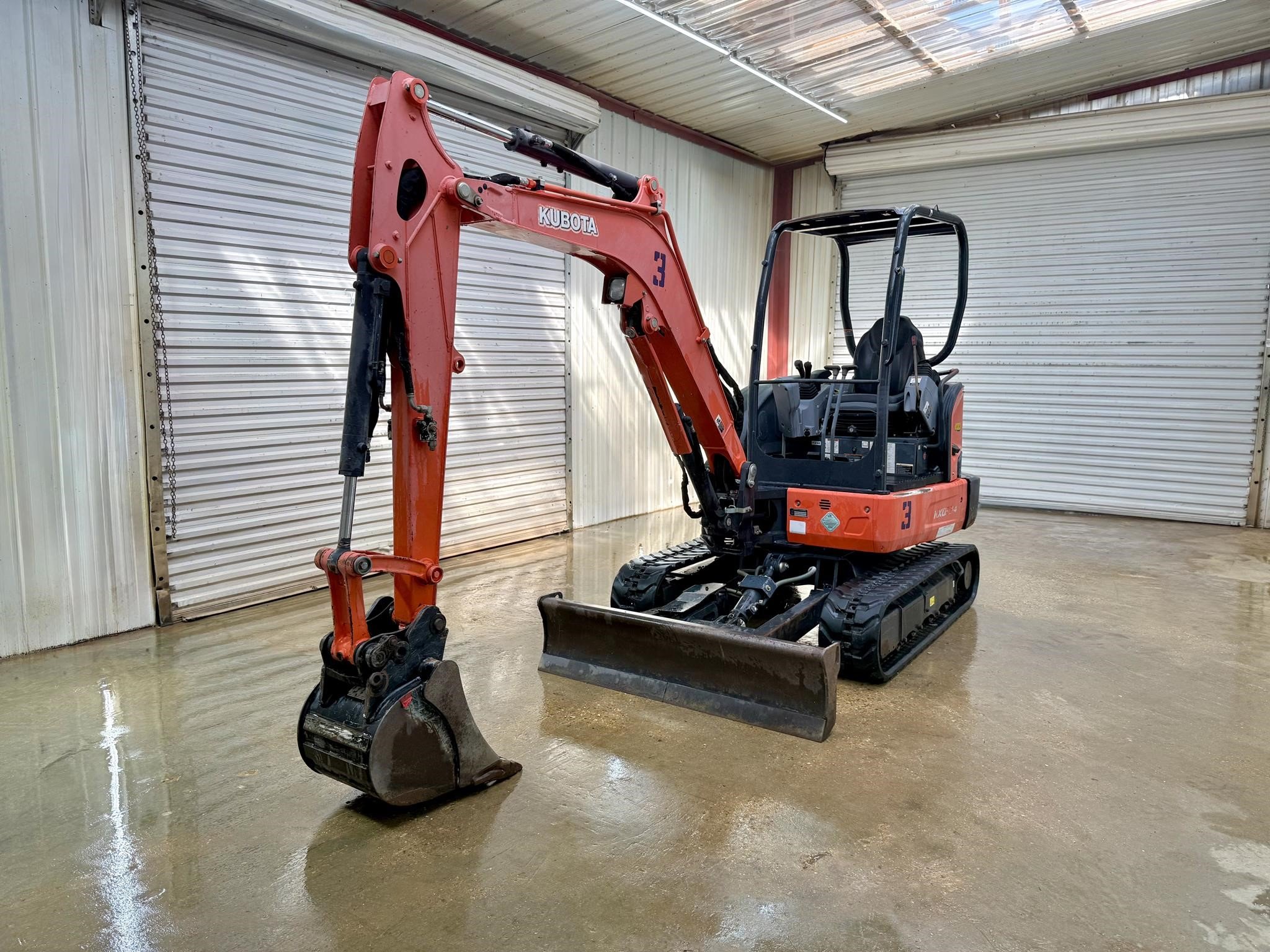

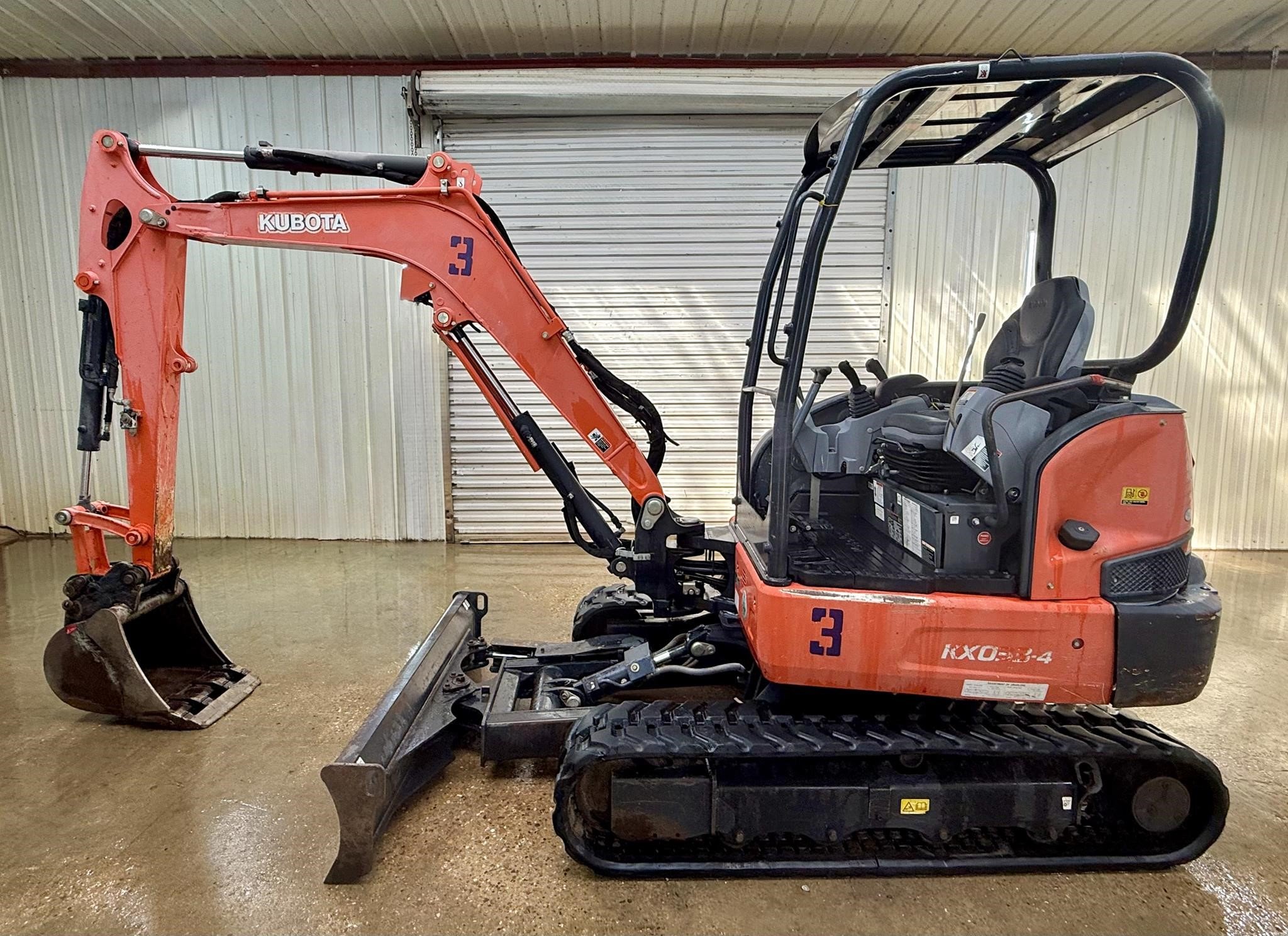

2020 KUBOTA KX033-4 Excavators - Mini

Machine Highlights
Year: 2020
Make: Kubota
Model: KX033-4
OROPS
Auxiliary Hydraulics
Straight Blade
2 Speed
Max Digging Depth: 10'6"
Operating Weight: 7,616 LBS

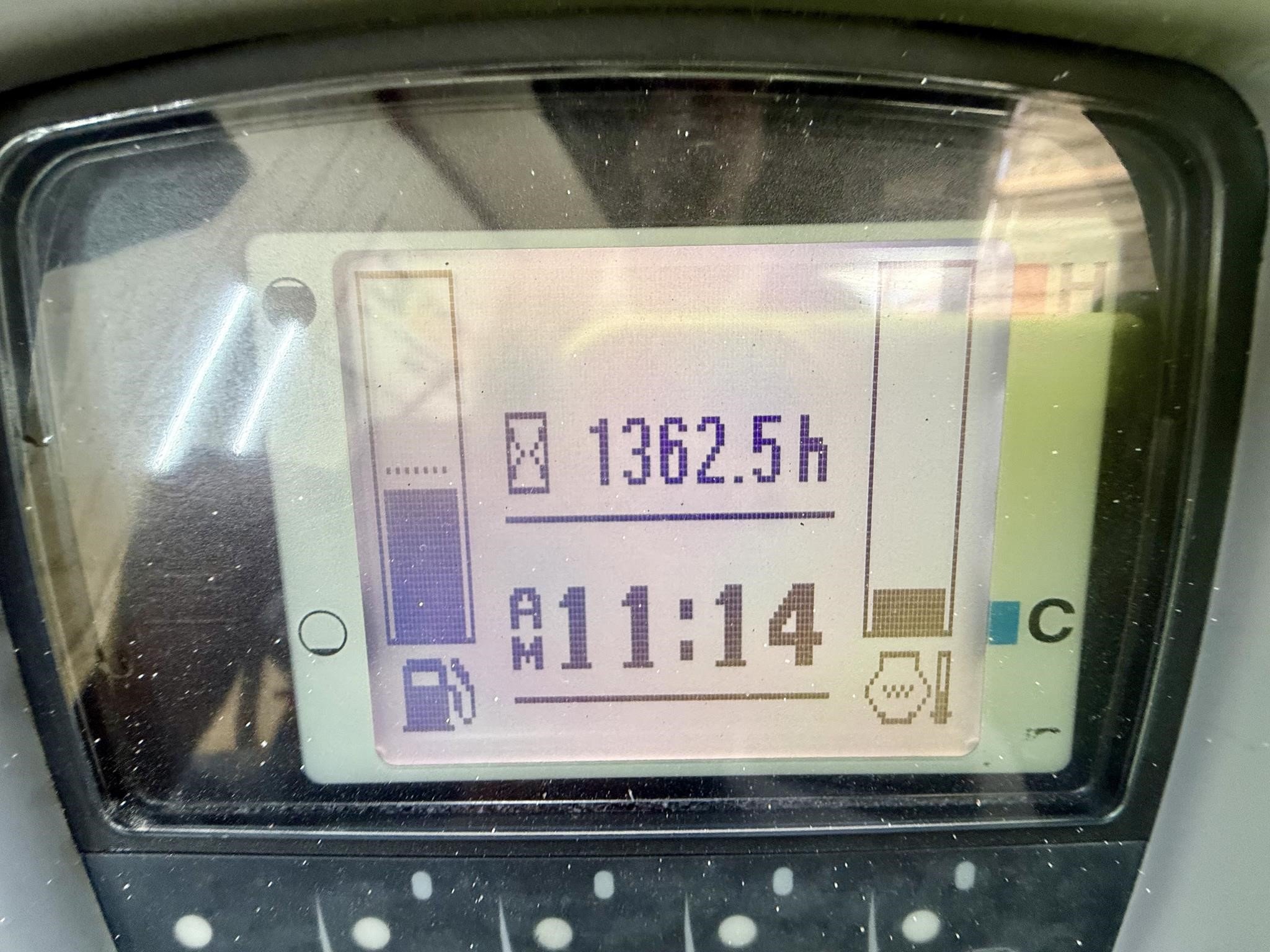

Hours: 1362

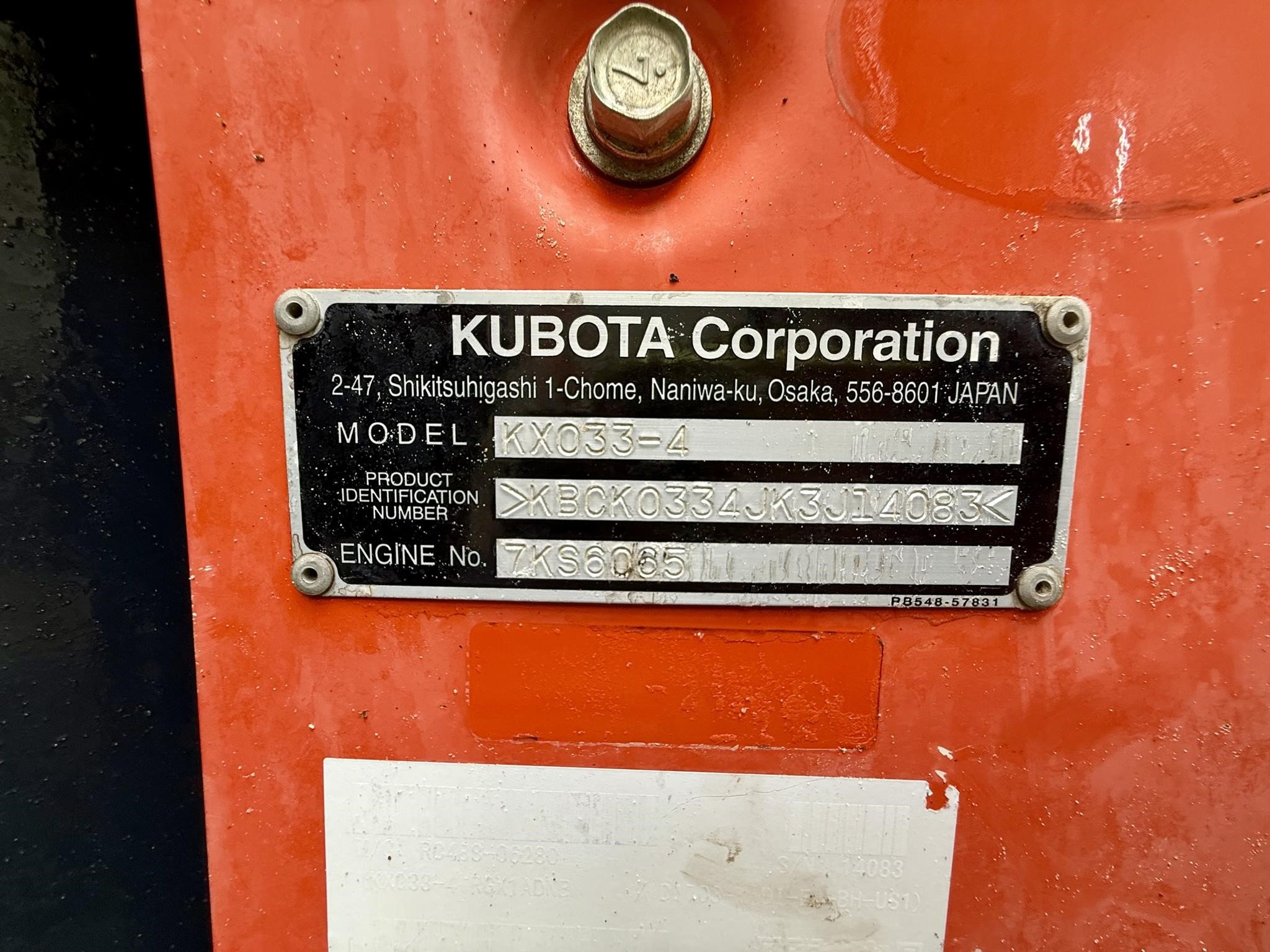

Serial Number: 14083

Warranty
EXTENDED WARRANTY AVAILABLE FOR PURCHASE
Ask one of our salesman for more information!

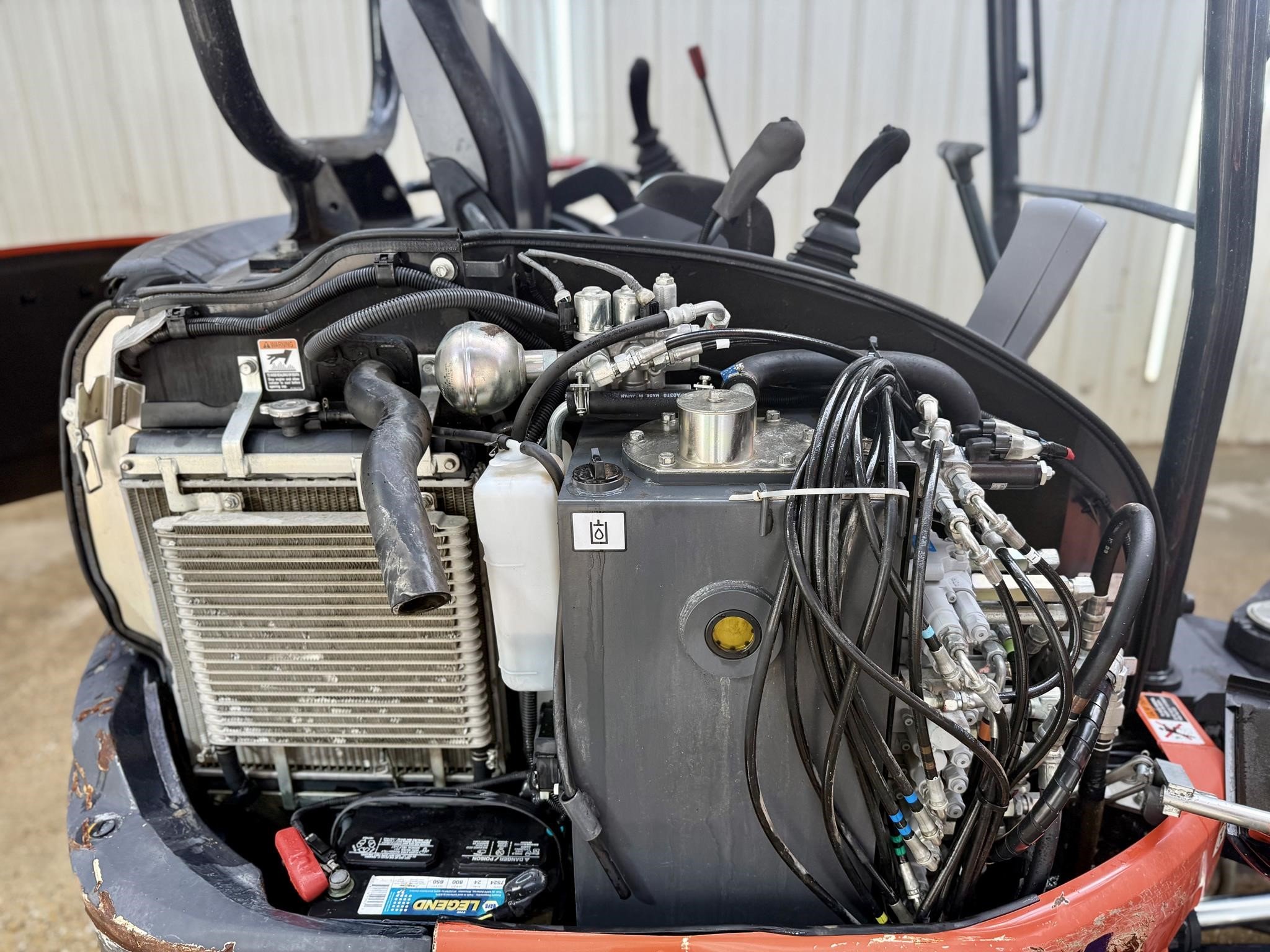

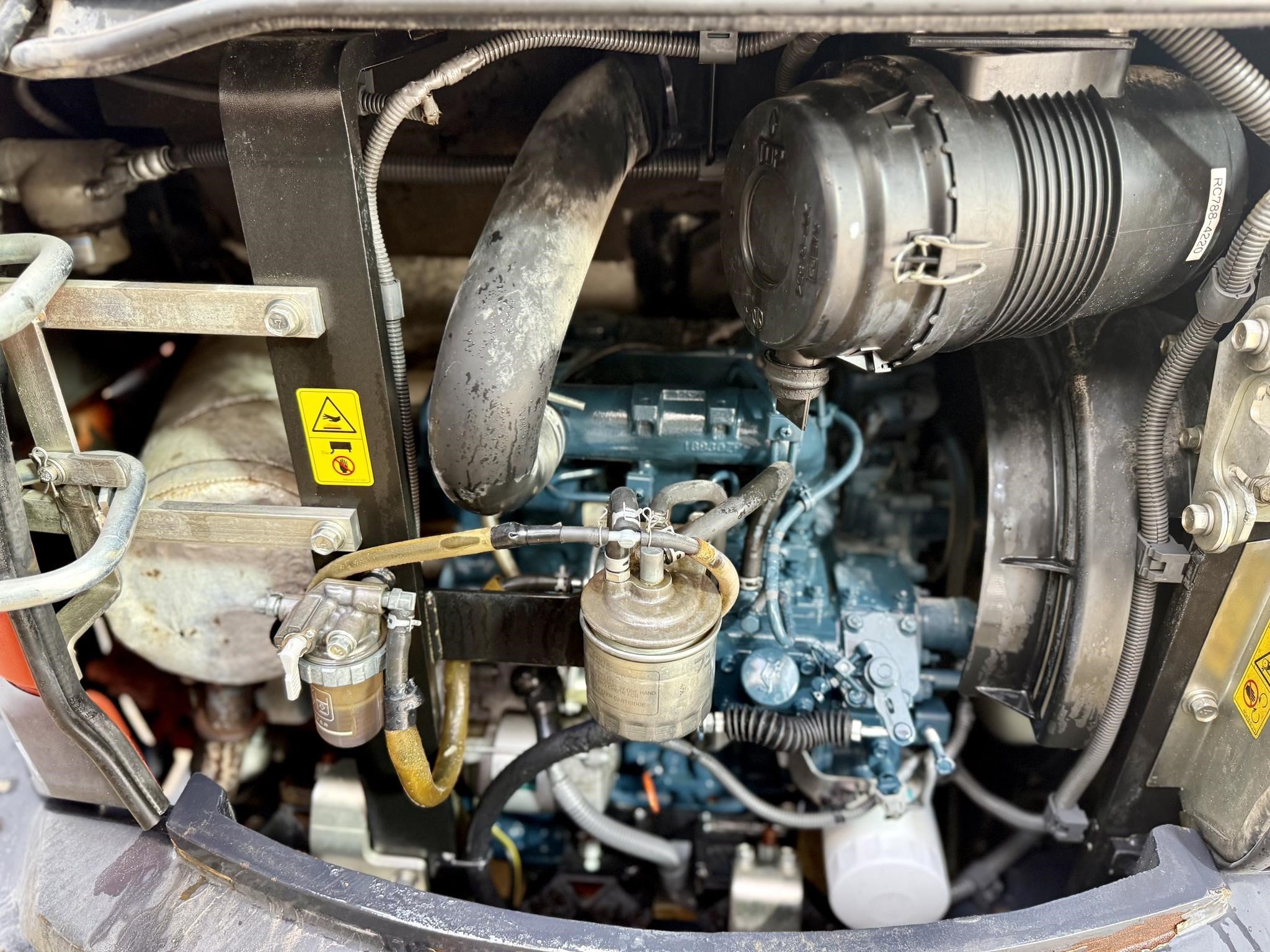

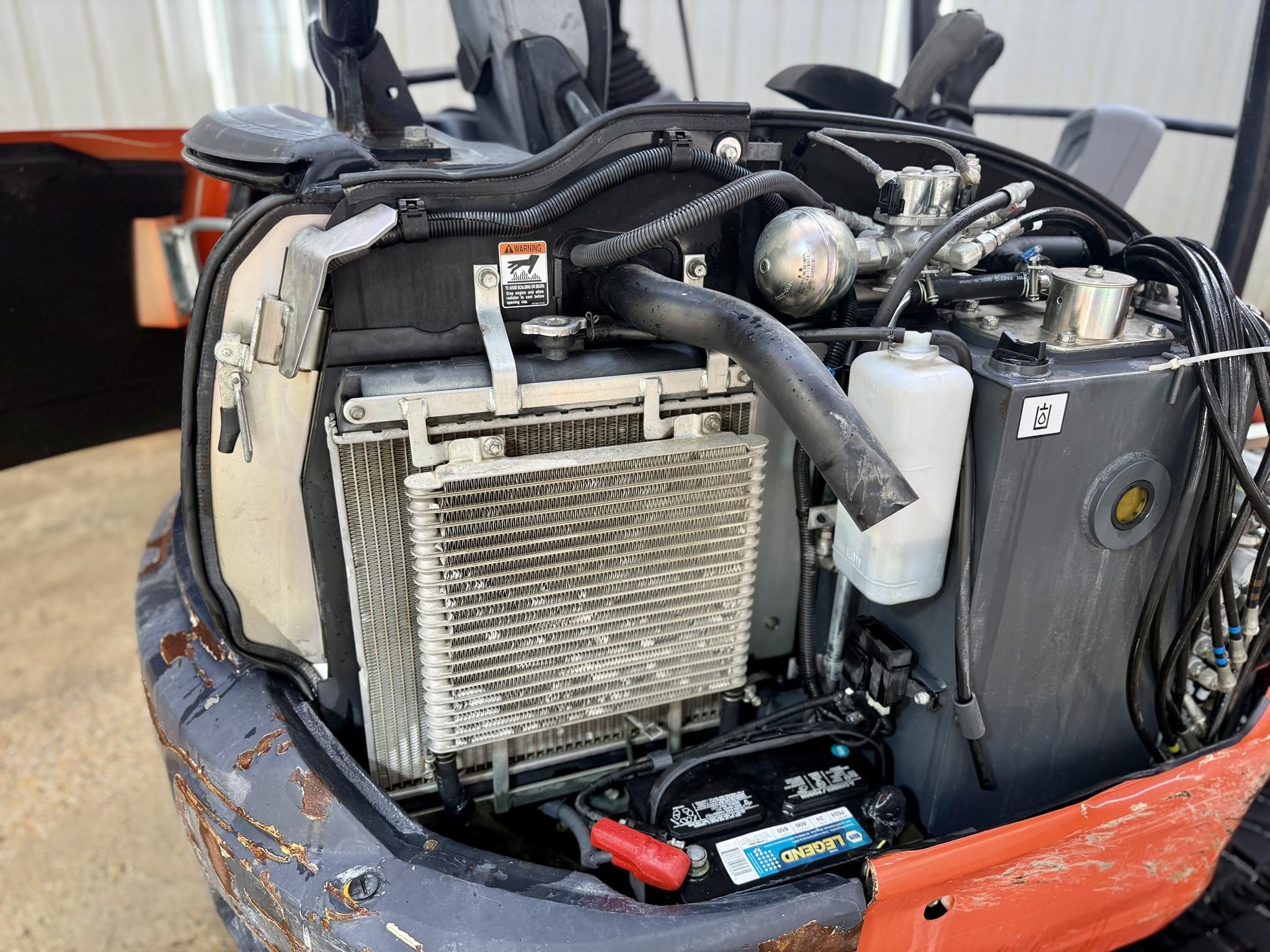

Engine
Make Kubota
Model: D1703M-DI-E4
Output (HP)/rpm: 24.8 / 2200
Output (HP)/rpm: 23.2 / 2200
Displacement cu. in.: 100.5

Dimensions
Operating Weight: 7,616 LBS
Overall length: 15'6"
Overall height: 8'1"
Overall width: 5'1"
Min. Ground clearance: 11.4
Boom offset
Right: 1'4.1"
Left: 1'5.7"

Blade lift
Upper: 1'2.4"
Low: 1'2.8"

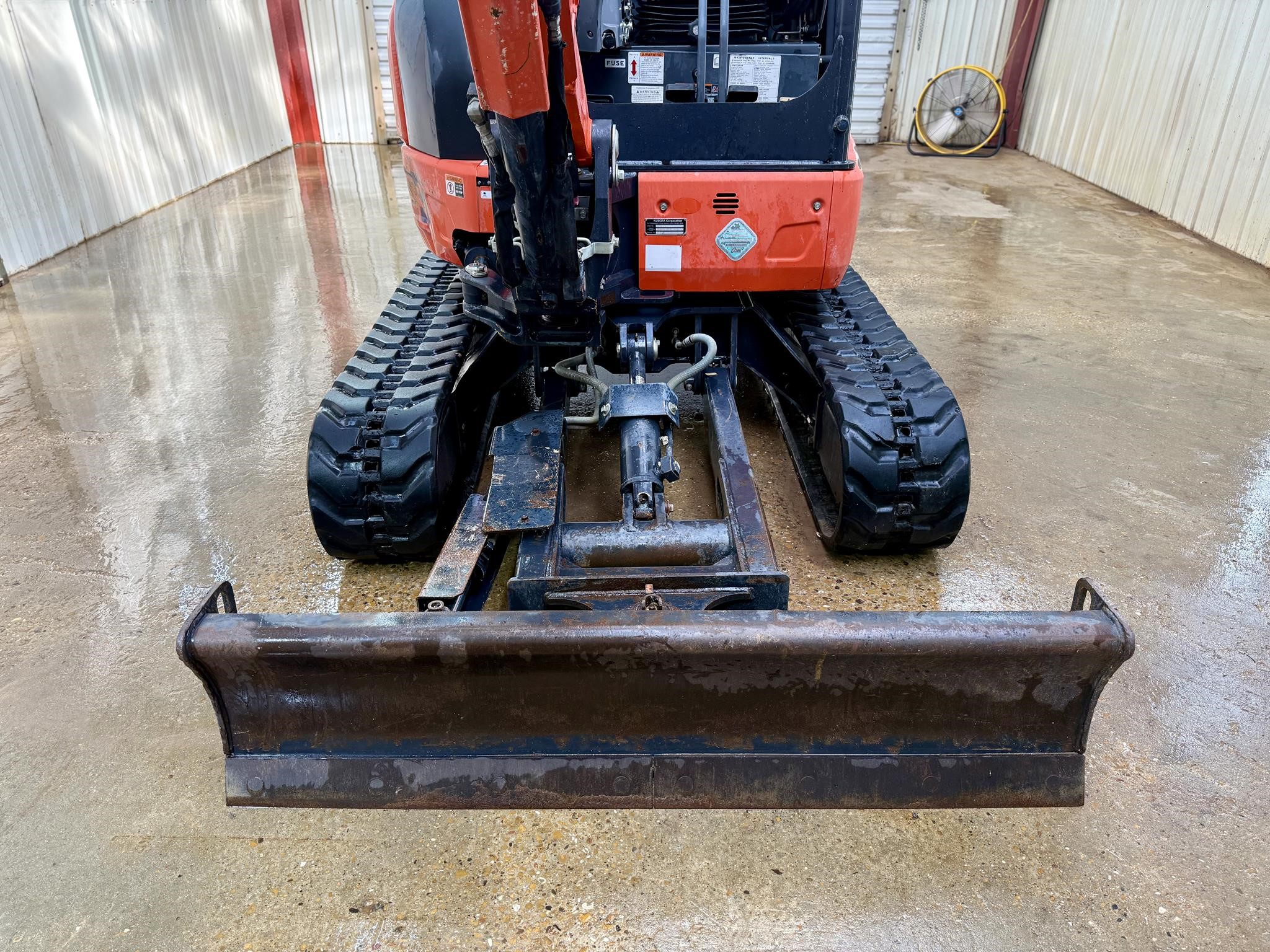

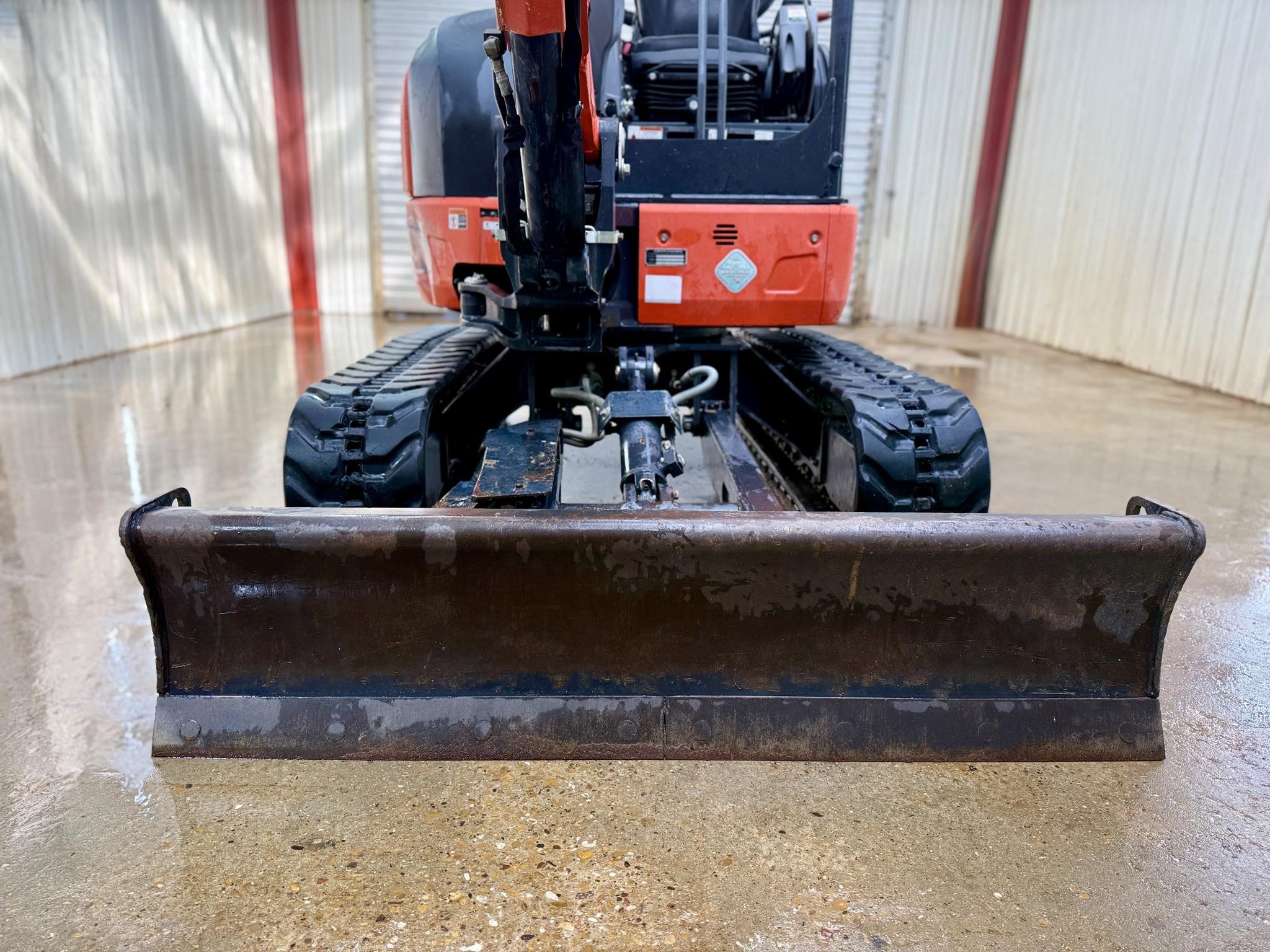

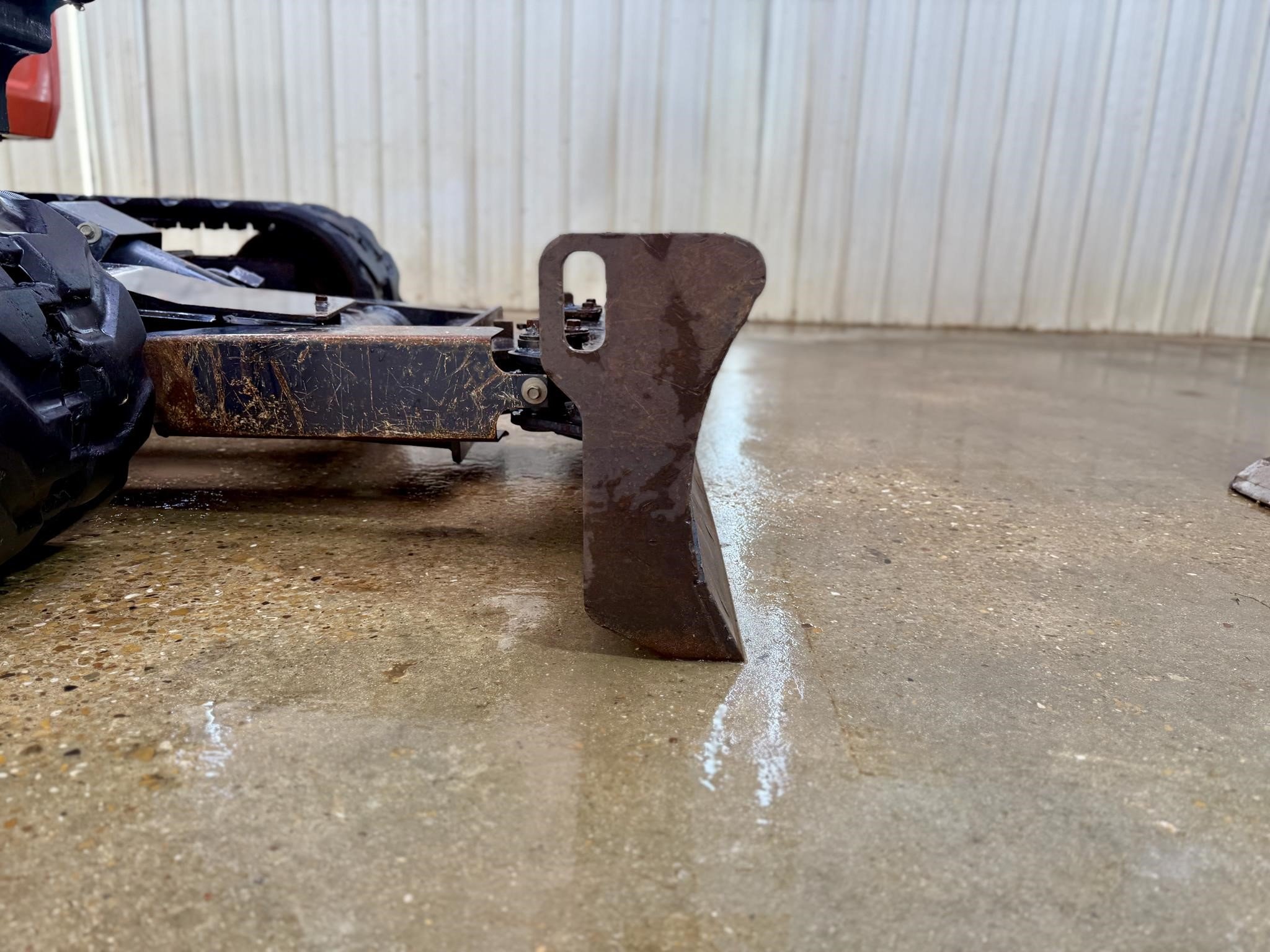

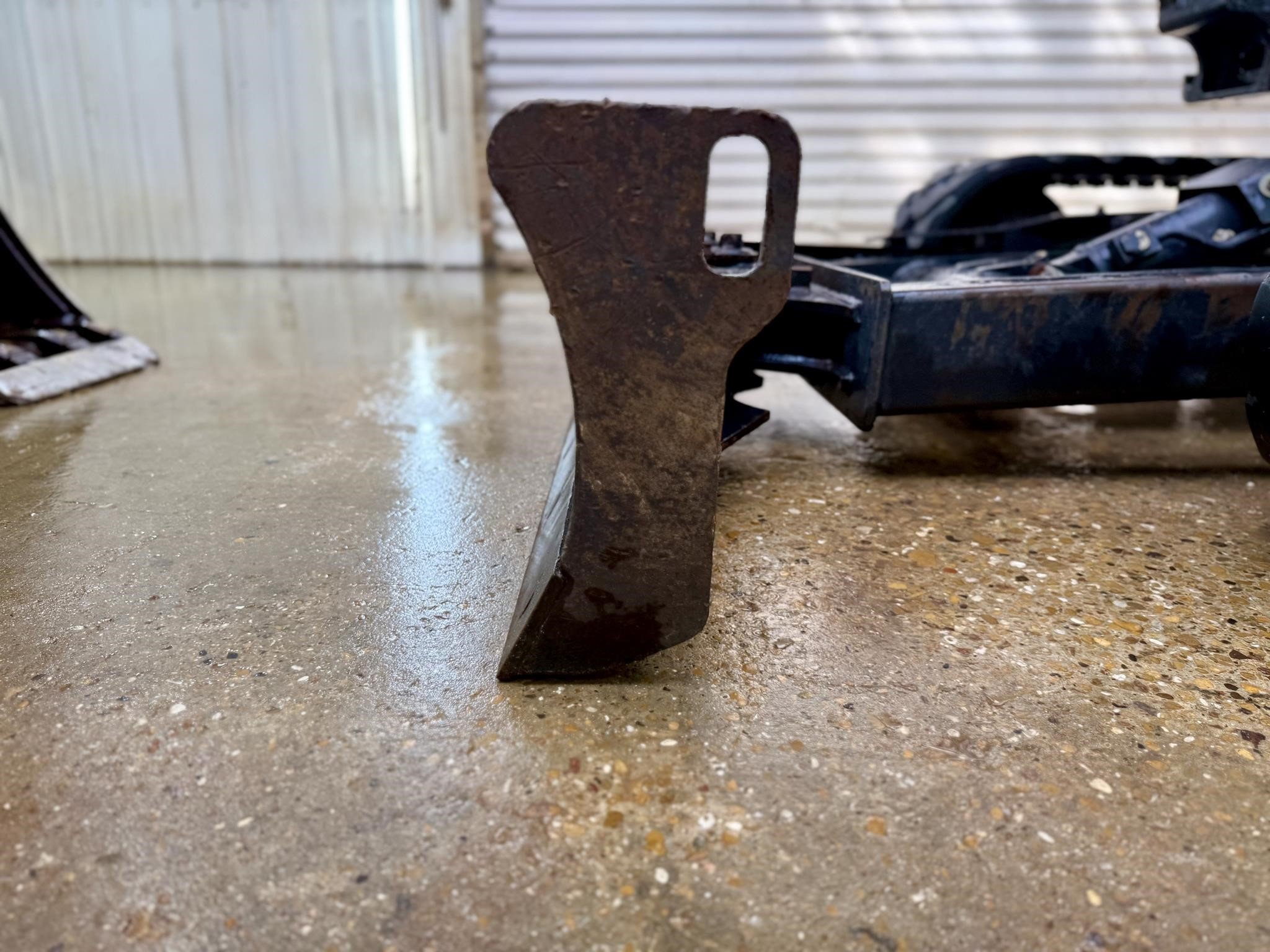

Blade Dimensions:
Width: 5’1”
Height: 1’3.2”
Max. Lift Above Ground: 15.9”
Max. Drop Below Ground:18.9”
Angle Left/Right: 25/25 degrees

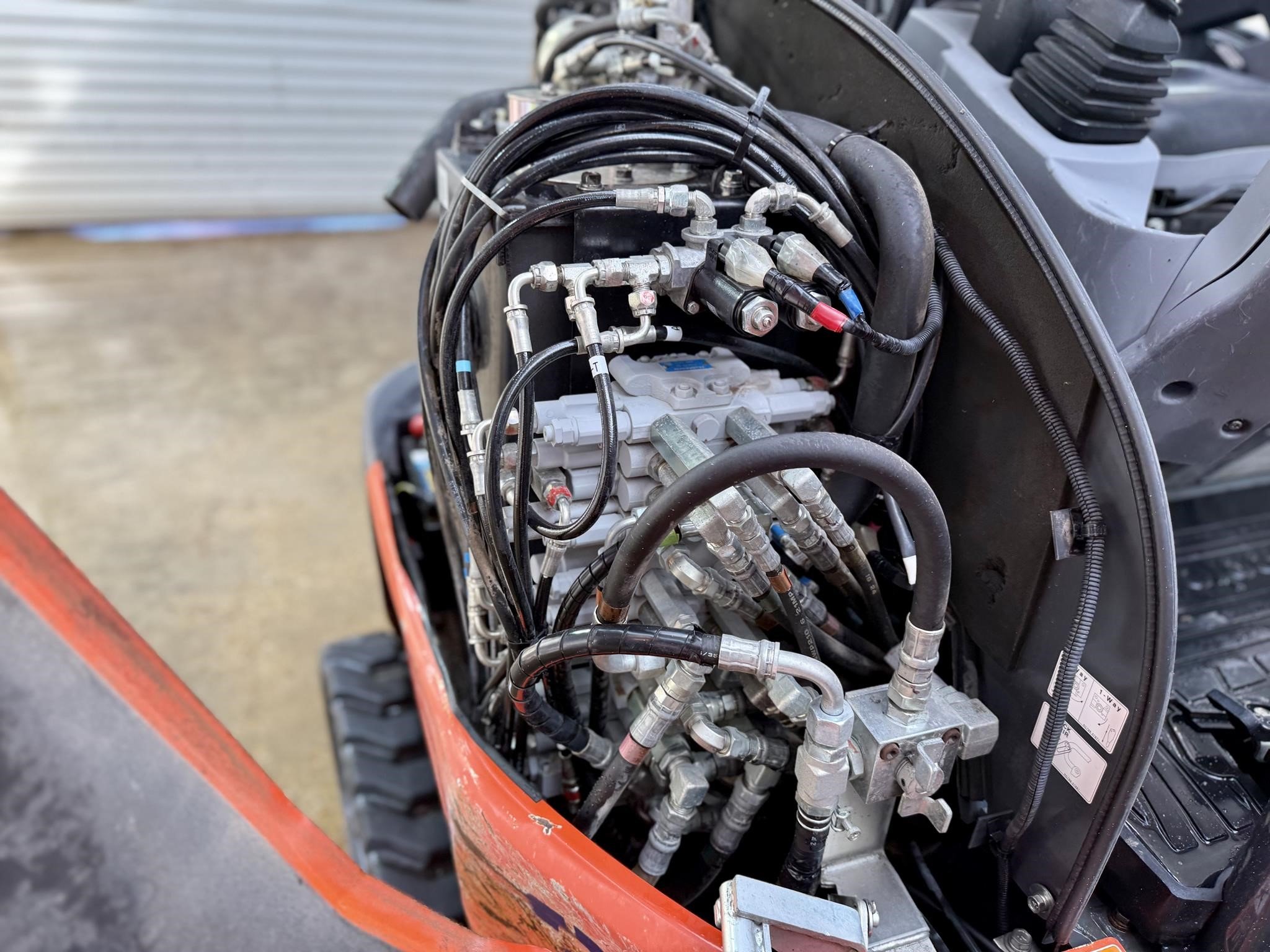

Hydraulic system:
Pump capacity gpm 10.5 x 2 / 5.5 x 1
Auxiliary hydraulic flow: 15.8 GPM

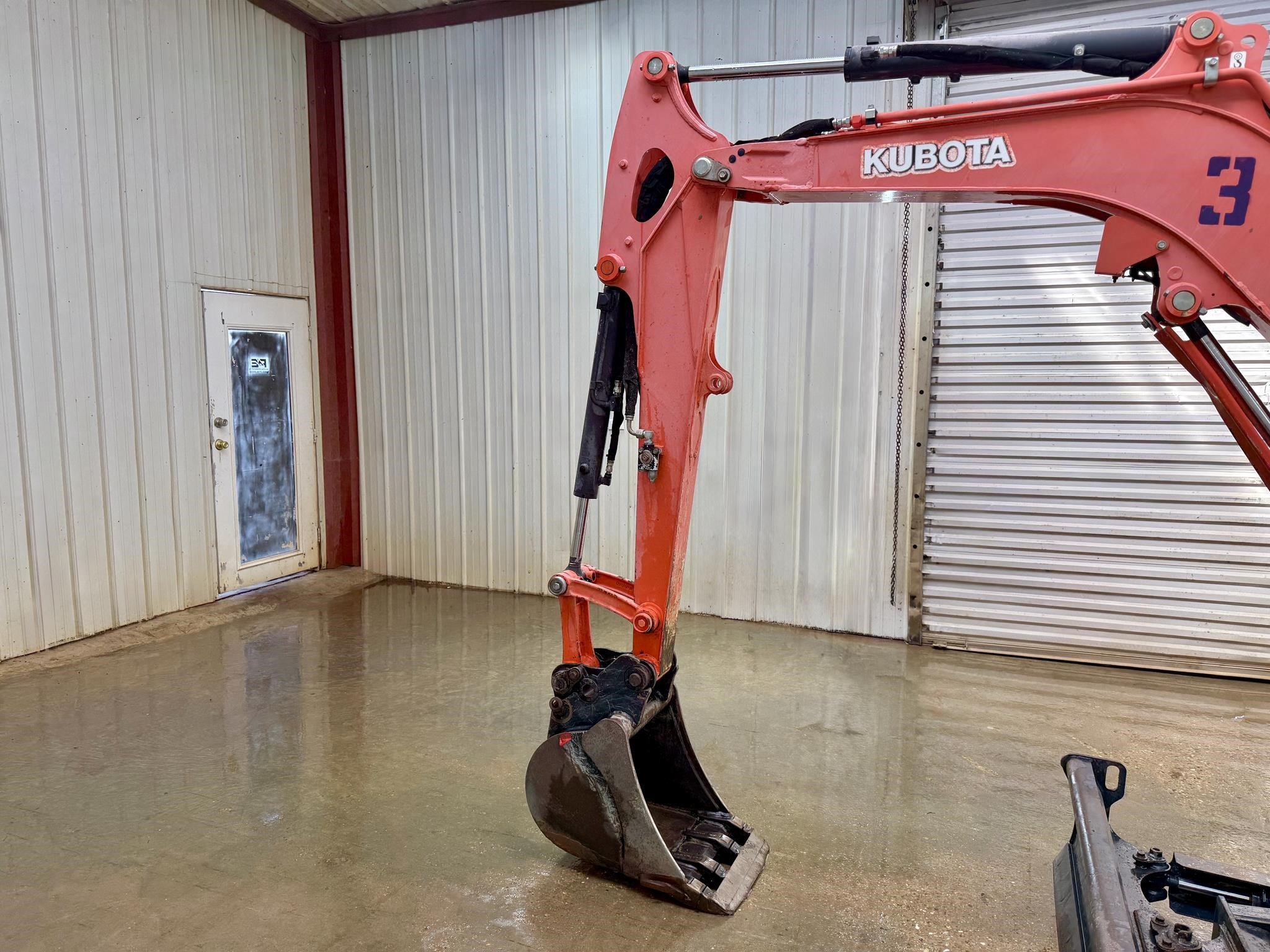

Max. breakout force

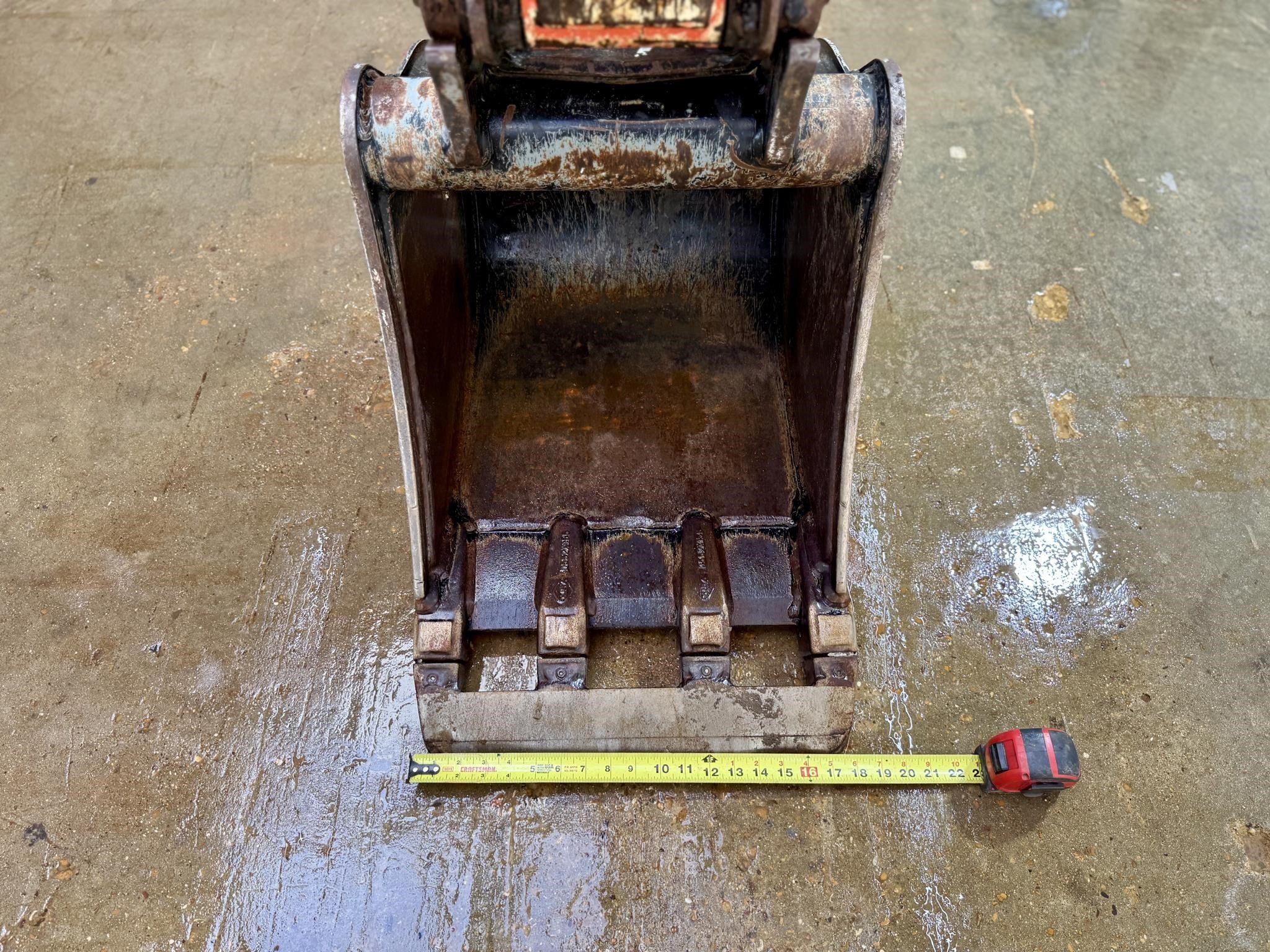

Bucket: 8,138 LBS
Arm: 3,867LBS
Max. traction force
Low speed: 6091 LBS
Tumbler distance ft. in.: 5'5.6"

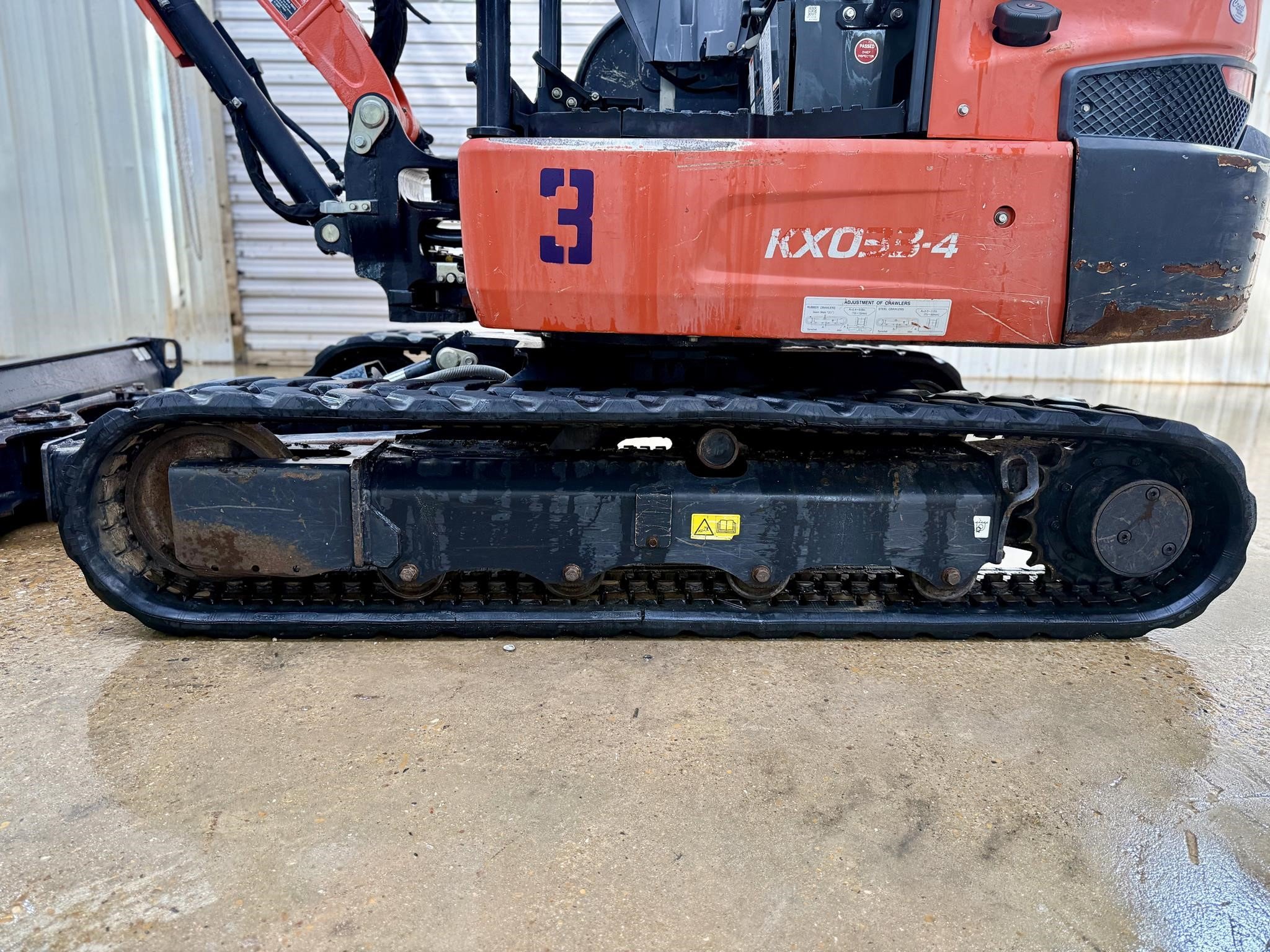

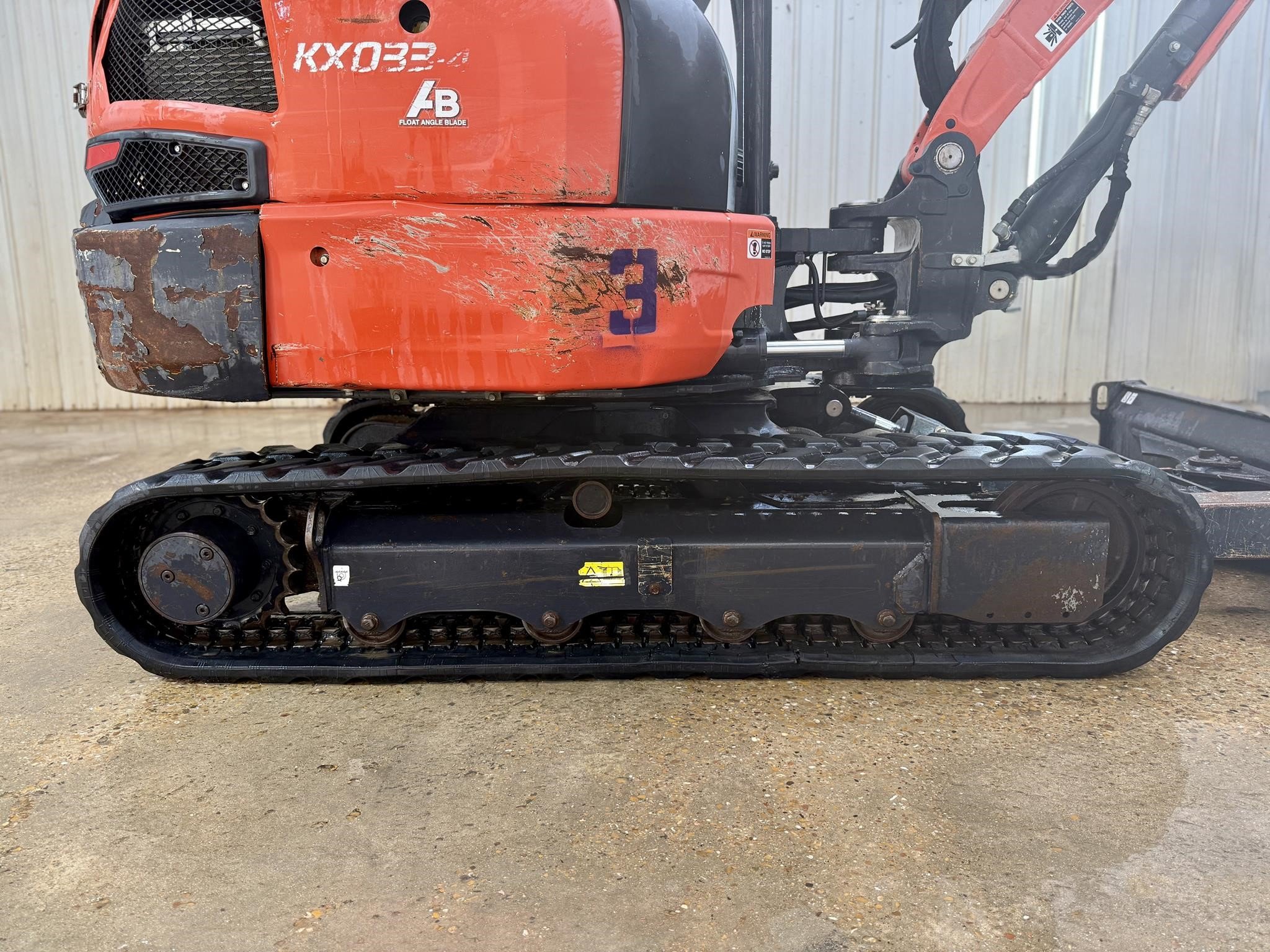

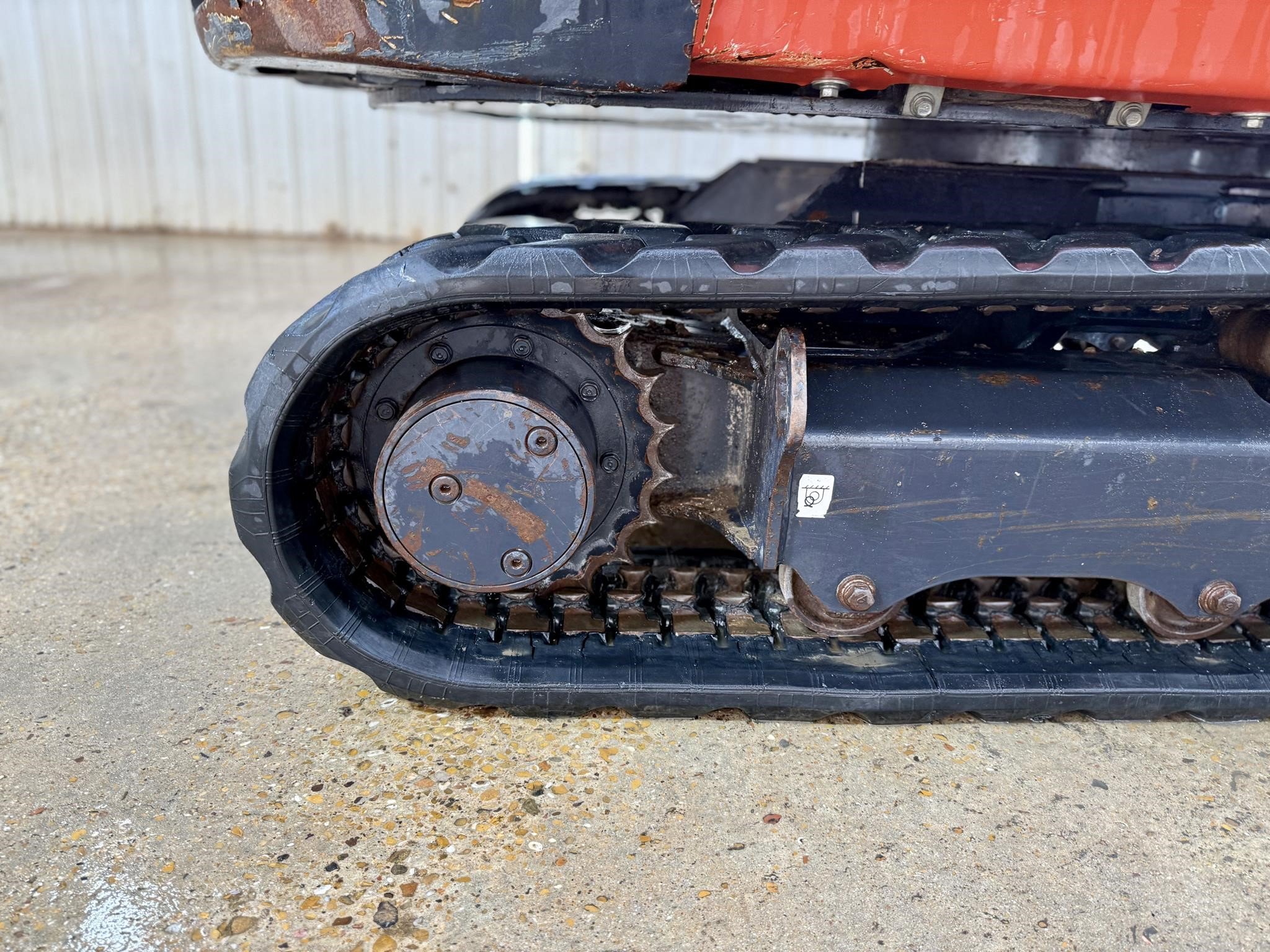

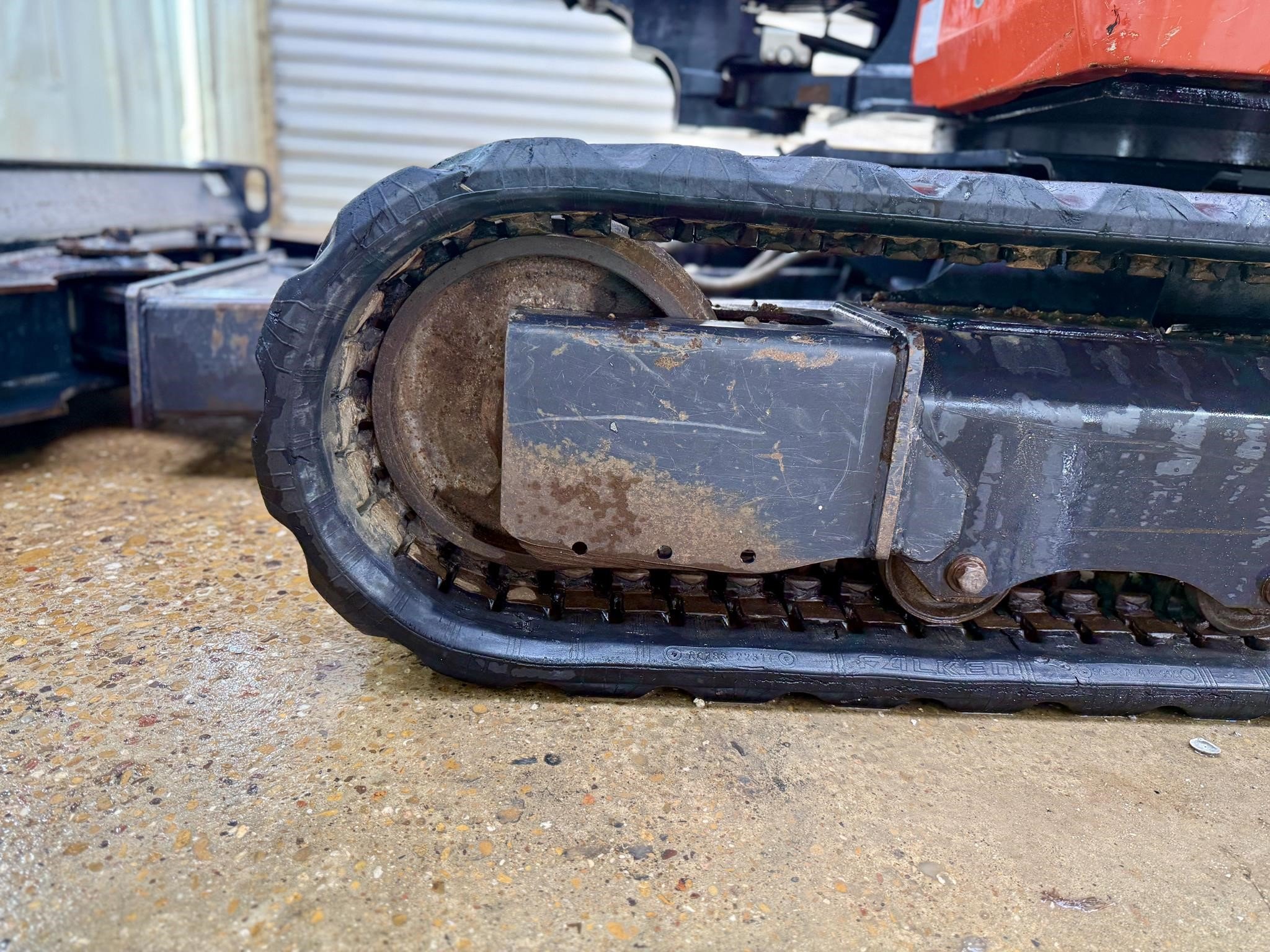

Crawler length ft. in.: 6'10.6"

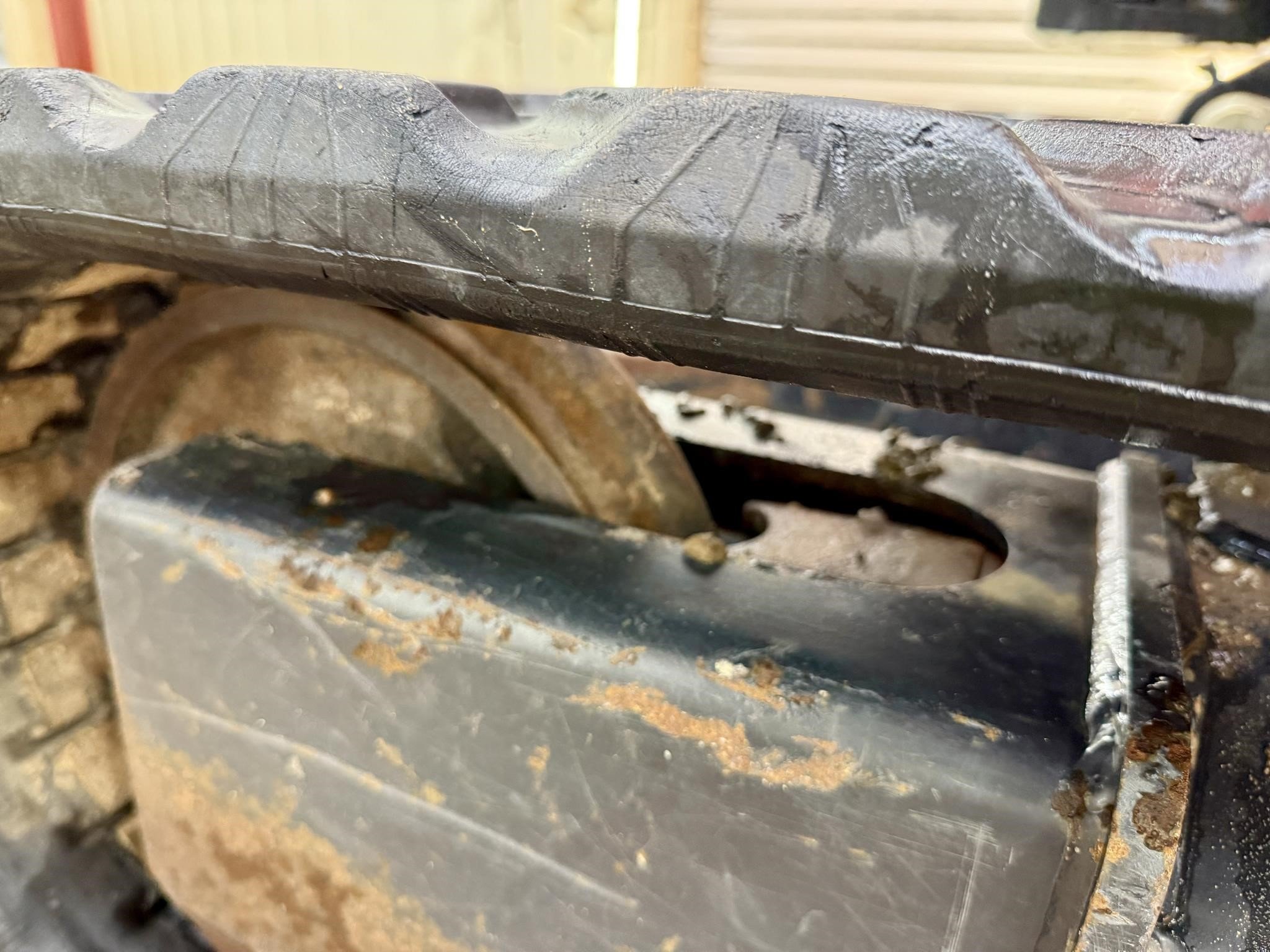

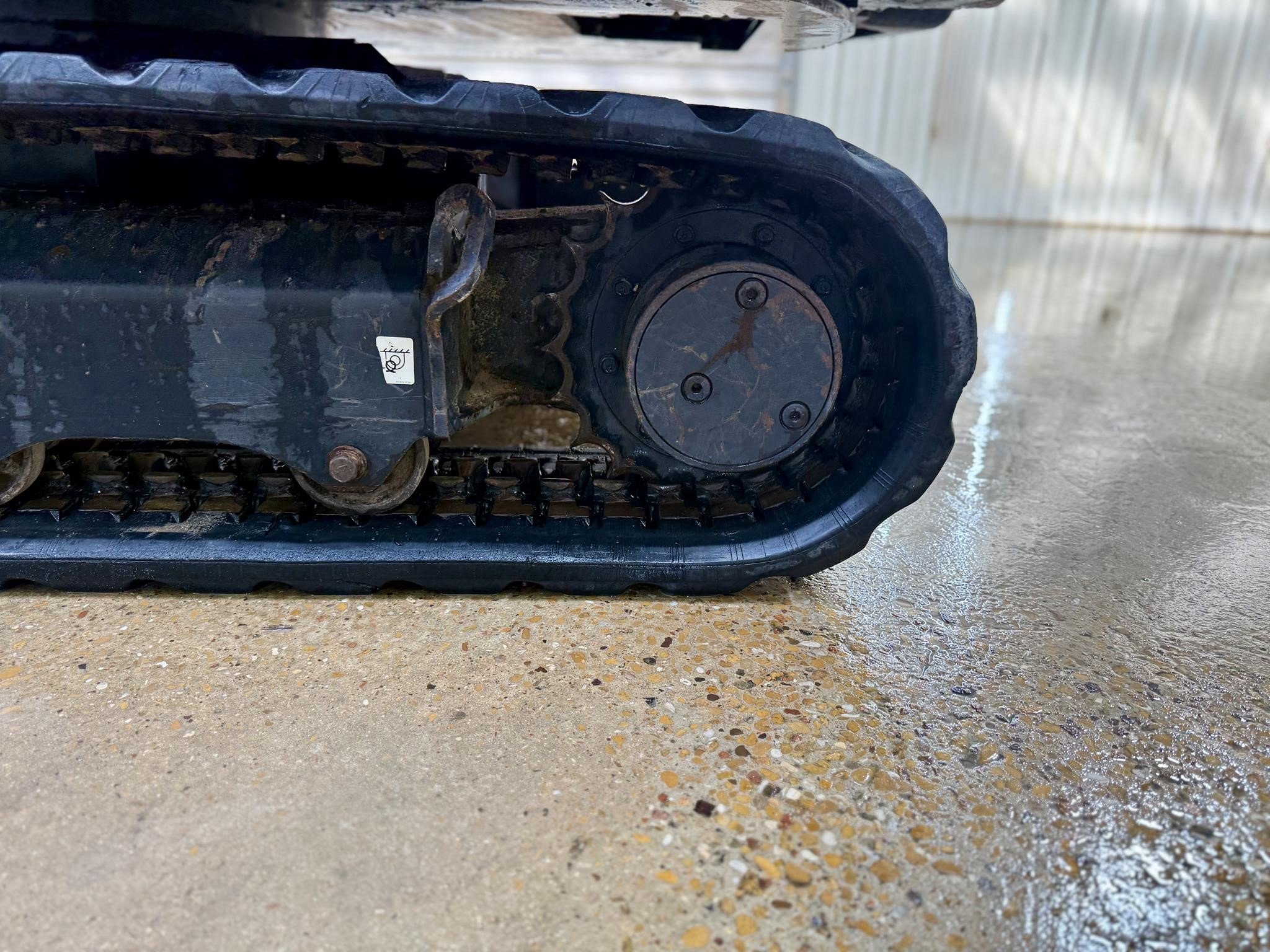

Shoe width
Rubber / Steel in.: 11.8
Ground Contact Pressure: 4.583 psi

Swing System:
Unit swing speed rpm: 8.9
Boom swing angle
Left degree: 70
Right degree: 48

2020 KUBOTA KX033-4 OROPS MINI COMPACT TRACK EXCAVATOR WITH 2-SPEED, AUXILIARY HYDRAULICS, ANGLE BLADE, 24.8 HP, A MAX DIG DEPTH OF 12’2”, AND AN OPERATING WEIGHT OF 7,616 LBS! EXTENDED WARRANTY AVAILABLE FOR PURCHASE. ASK ONE OF OUR SALESMAN FOR MORE INFORMATION!
